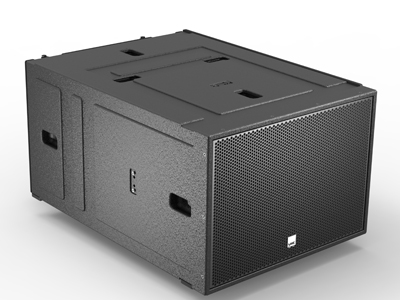

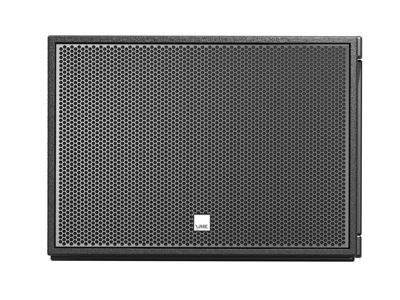

YG SUBDUAL 18" PASSIVE SUBWOOFER SPEAKER
YG SUB is 2 X 18" passivesubwoofer specially designed to work with passive YOGA X or YOGA E system for those applications which need massive and extended low frequency reproduction.

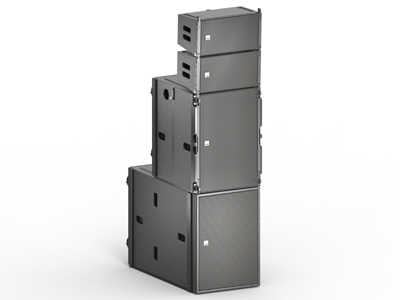

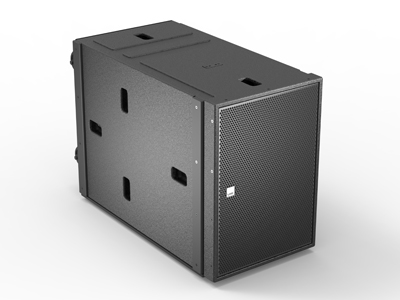

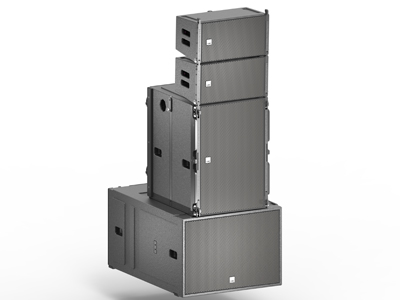

YG SUB utilizes high performance dual 18” ferrite driver (100mm voice coil and a humidity resistant paper cone) that can lower the range down to 30Hz (± 3dB) and deliver an output of high efficiency, great range, deep frequency and excellent dynamics. Its super slim enclosure can be perfectly ground stacked upright or crosswise with bass speakers (YG 18 or YG 30) as main PA as well as with line array speakers (YG 65 or YG 75) as front fill system.

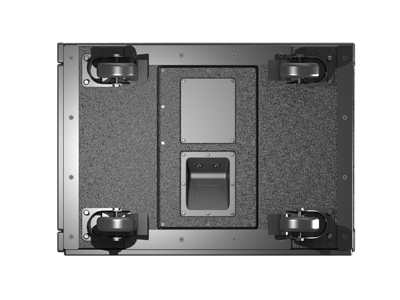

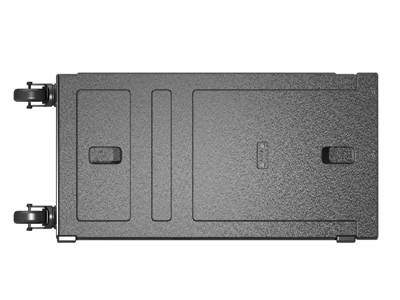

The 2 nylon strips offer protection to the bottom of the enclosure from scratches. Together with the slot which designed on the top of enclosure, the nylon strips also facilitate installation of one enclosure to another much easier. Ultra solid enclosure made from18mm high quality birch plywood and finished with superb polyurea paint which features anti-scratch and waterproof.
Due to the universal enclosure design, passive YG SUB can be converted to active YG SUBA by simply installing the amplifier module.
YG SUB utilizes high performance dual 18” ferrite driver (100mm voice coil and a humidity resistant paper cone) that can lower the range down to 30Hz (± 3dB) and deliver an output of high efficiency, great range, deep frequency and excellent dynamics. Its super slim enclosure can be perfectly ground stacked upright or crosswise with bass speakers (YG 18 or YG 30) as main PA as well as with line array speakers (YG 65 or YG 75) as front fill system.
The 2 nylon strips offer protection to the bottom of the enclosure from scratches. Together with the slot which designed on the top of enclosure, the nylon strips also facilitate installation of one enclosure to another much easier. Ultra solid enclosure made from18mm high quality birch plywood and finished with superb polyurea paint which features anti-scratch and waterproof.
Due to the universal enclosure design, passive YG SUB can be converted to active YG SUBA by simply installing the amplifier module.

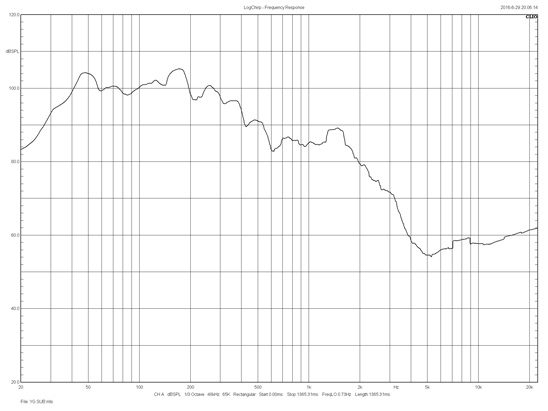

| Frequency Response | 30Hz--100Hz(±3dB) |
| 25Hz--120Hz(-10dB) | |
| Sensitivity (1W / 1M) | 101dB |

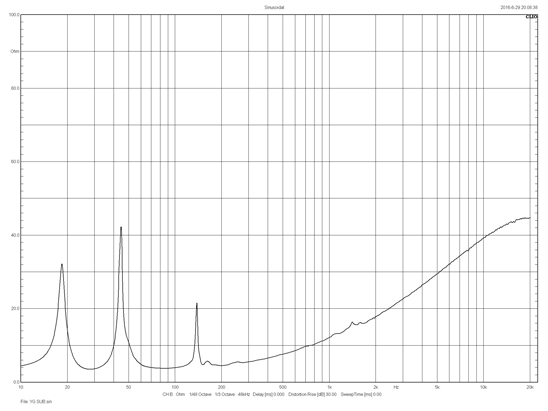

| Nominal Impedance | 6Ω |
| Power Rating (AES) | 1600W |
| Driver | 2x18 "(100mm voice coil), Ferrite |
| Maximum SPL | 133dB SPL, 139dB SPL peak |
| Dimensions (H x W x D) | 740x535x1151(mm) |
| Weight | 83 kg |
| Connection | 2 x Neutrik NL4MP, LF: 1+1- |
| Enclosure | 15mm, 18mm multilayer birch plywood |
| Finish | Black polyurethane paintwork |
| Grille | Black steel mesh + acoustic transparent cloth |
