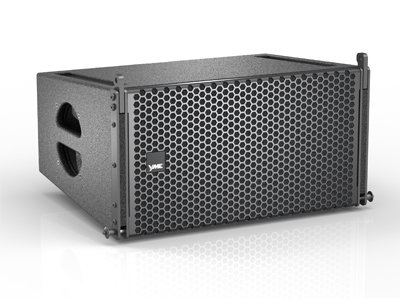

iA 210DUAL 10" PASSIVE LINE ARRAY SPEAKER

  • iA 210
The iA 210 is a dual10" two way bi-amp passive line array speaker.

iA 210 utilizes a high quality neodymium 1.4" horn throat compression tweeter with 75 mm (3") voice coil and two 10” high output neodymium mid-low driver with 75mm voice coil and humidity resistant paper cone, coupled with an optimized waveguide (15° vertical and 75° horizontal dispersion). iA 210 ensures extraordinary performance with penetration and smoothness.

Ultra compact and solid enclosure made from 15mm or 18mm high quality plywood and finished with durable water paint for installation use.

iA 210 can be flown with bass speakers(iA 210B) as main PA. The 3-point rigging system  offers angle adjustment from 0 to 10° with 2° step.

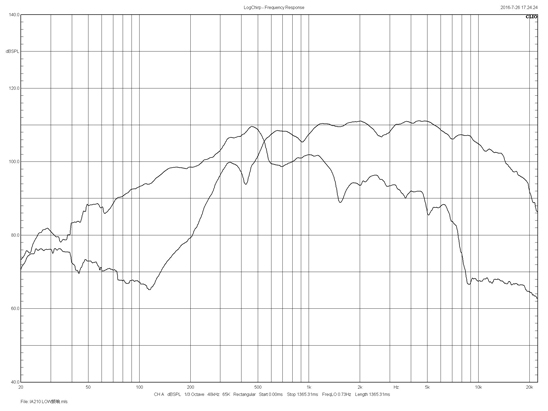

 Frequency Response90Hz--16kHz(±3dB)
80Hz--18kHz(-10dB)
 Sensitivity (@1w / 1m)HF:112dB, LF:100dB
 Crossover1.3kHz

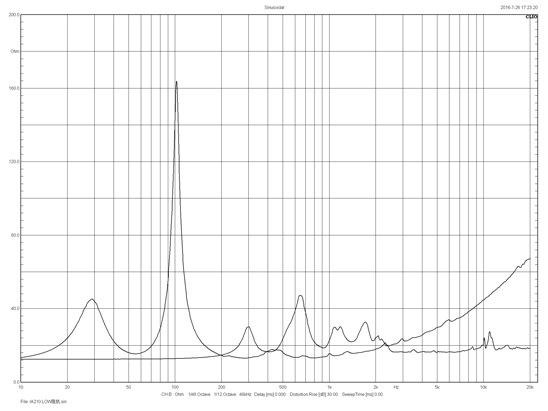

 Nominal ImpedanceHF:16Ω, LF:16Ω
 Power Rating (AES)HF:80W, LF:700W
 LF Driver2x10" (75mm voice coil), neodymium
 HF Driver1x3''(1.4" throat) neodymium compression driver (75mm voice coil)
 Nominal Coverage75°H x 15°V
 Maximum SPLHF:131dB SPL, 137dB SPL Peak
LF:128dB SPL, 134dB SPL Peak
 Dimensions (H x W x D)345 x 580 x 486 mm
 Weight22 kg
 Connection2 x Neutrik NL4MP, LF:1+1-, HF:2+2-
 Case material15mm, 18mm multilayer plywood
 Finish

Black water-based paint

 Grill

Black steel mesh + acoustic transparent cloth
