iA 110SINGLE 10" PASSIVE LINE ARRAY SPEAKER

  • iA 110
The iA 110 is a single10" two way bi-amp passive line array speaker.

iA 110 utilizes a high quality neodymium 1.4" horn throat compression tweeter with 75 mm (3") voice coil and a 10” high output neodymium mid-low driver with 75mm voice coil and humidity resistant paper cone, coupled with an optimized waveguide (10° vertical and 90° horizontal dispersion). iA 110 ensures extraordinary performance with penetration and smoothness.

Ultra compact and solid enclosure made from 15mm or 18mm high quality plywood and finished with durable water paint for installation use.

iA 110 can be flown with bass speakers(iA 110B) as main PA. The integrated 3-point rigging system offers angle adjustment from 0 to 10° with 2° step.

The official EASE FOCUS 3 GLL data for iA 110 is available .

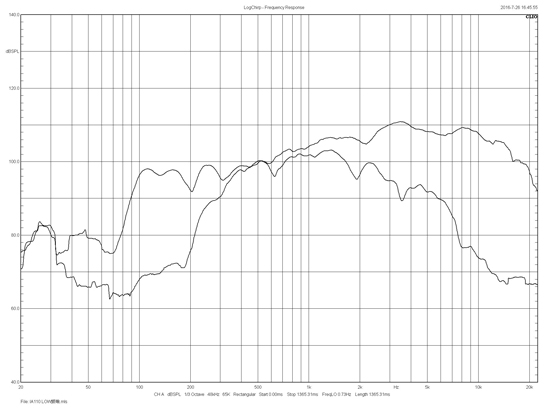

 Frequency Response90Hz--18kHz(±3dB)
80Hz--20kHz(-10dB)
 Sensitivity (1W / 1M)HF:112dB, LF:103dB

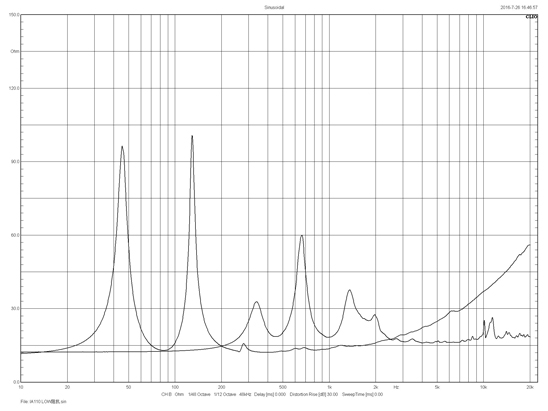

 Nominal ImpedanceHF:16Ω, LF:16Ω
 Power Rating (AES)HF:80W, LF:350W
 LF Driver1x10" (75mm voice coil), Neodymium
 HF Driver1x3''(1.4"throat) Neodymium compression driver (75mm voice coil)
 Nominal Coverage90 ° (H), Vertically adjustable maximum 10 °
 Maximum SPLHF:131dB SPL, 137dB SPL peak
LF:128dB SPL, 134dB SPL peak
 Crossover1.3kHz
 Dimensions (H x W x D)307 x 526 x 339 mm
 Weight18 kg
 Rigging2 x M10 rigging point (top, bottom, side, back)
 Connection2 x Neutrik NL4MP, LF:1+1-, HF:2+2-
 Case material15mm, 18mm multilayer plywood
 Finish

Black water-based paint

 Grille

Black steel mesh + acoustic transparent cloth
