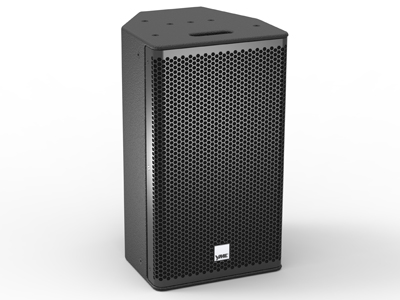

VS 10-8 | VS 10-4SINGLE 10" PASSIVE FULL RANGE SPEAKER
VS 10-8 is single 10” passive two way full range at 8Ω. Rather than a normal coaxial driver, utilizing a creative design of coaxial structure – a 1.4”(44MM voice coil )with 80° x 80° horn is placed onto a 8” (75MM voice coil)symmetrically, which makes VS 10-8 perform perfectly with not only accurate sound image and high fidelity but also powerful dispersion.

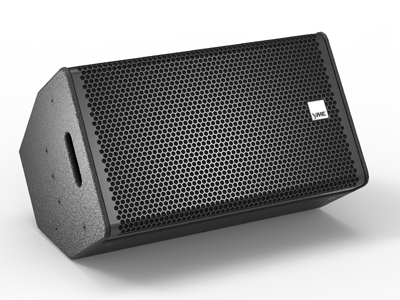

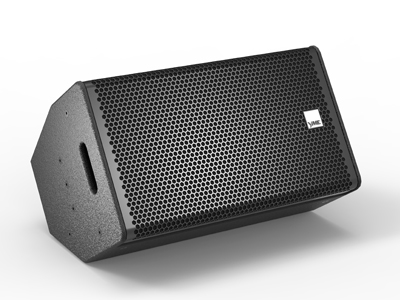

Thanks the multi-angle enclosure, VS 10-8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile, VS 10-8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.VS 10-8 Can be pole-mounted on bass speakers (VS 15B) as PA or satellite system.
VS 10-4 is 4Ω version which normally works with active bass speaker VS 15BA as satellite system.
Thanks the multi-angle enclosure, VS 10-8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile, VS 10-8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.VS 10-8 Can be pole-mounted on bass speakers (VS 15B) as PA or satellite system.
VS 10-4 is 4Ω version which normally works with active bass speaker VS 15BA as satellite system.
Model No. | VS 10-8 | VS 10-4 |

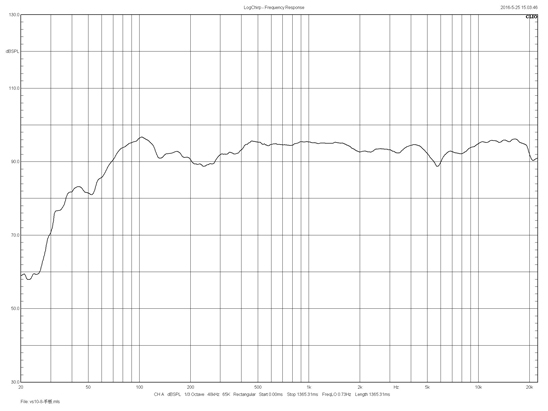

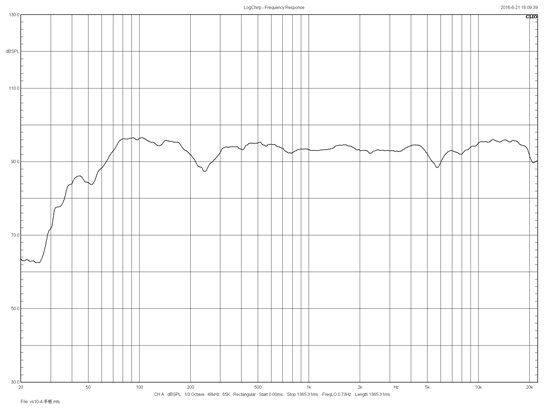

Frequency Response | 70Hz--18KHz(±3dB) | |
55Hz--20KHz(-10dB) | ||
LF Driver | 1 x 10" woofer(75mm voice coil), Ferrite | |
HF Driver | 1 x 1.75"(1" throat) Neodymium compression diver(44mm voice coil) | |
Nominal Coverage | 80° x 80° | |

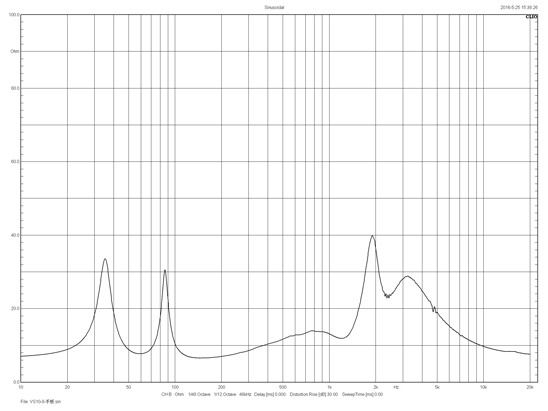

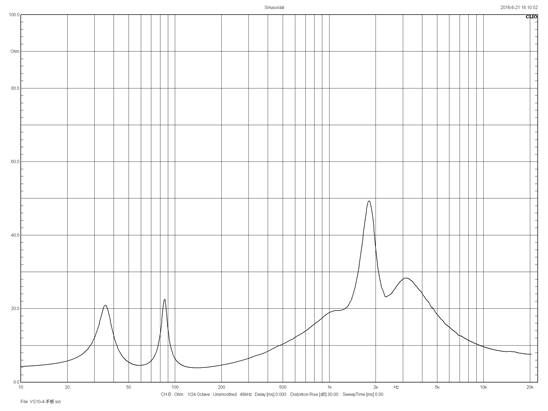

Impedance | 8Ω | 4Ω |
Sensitivity(@1w/1m) | 94dB | |
Power Rating | HF:50W, LF:400W | |
Max. SPL | 120dB SPL, 126dB peak | |
Dimensions (H x W x D) | 545 x 297 x 330 mm | |
Weight | 20 kg | |
Riggings | 17 x M8 points, 4 x φ8 PIN + dual pole mount | |

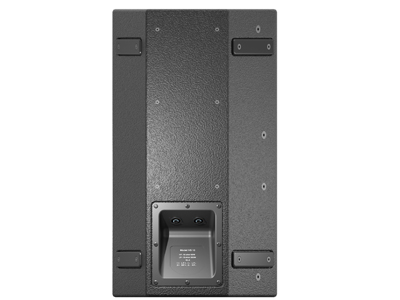

Connection | 2 x Neutrik NL4MP, 1+1- | |
Enclosure | 15mm, 18mm multilayer plywood | |
Finish | Black water-based paint | |

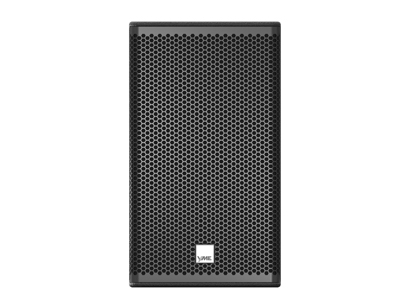

Grille | Black steel mesh + acoustic transparent cloth |
