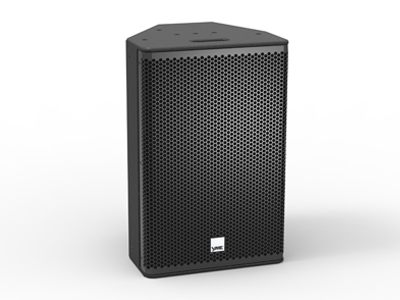

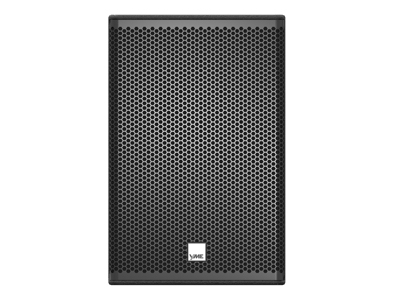

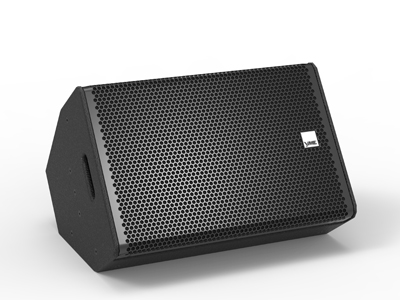

VS 12-8 | VS 12-4SINGLE 12" PASSIVE FULL RANGE SPEAKER
VS 12-8 is single 12” passive two way full range at 8Ω. Rather than a normal coaxial driver, utilizing a creative design of coaxial structure – a 1.4”(44MM voice coil )with 80° x 80° horn is placed onto a 12” (75MM voice coil)symmetrically, which makes VS 12-8 perform perfectly with not only accurate sound image and high fidelity but also powerful dispersion.
Thanks the multi-angle enclosure, VS 12-8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile, VS 12-8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.
VS 12-8 Can be pole-mounted on bass speakers (VS 18B) as PA or satellite system.
VS 12-4 is 4Ω version which normally works with active bass speaker VS 18BA as satellite system.
Thanks the multi-angle enclosure, VS 12-8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.
Meanwhile, VS 12-8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.
VS 12-8 Can be pole-mounted on bass speakers (VS 18B) as PA or satellite system.
VS 12-4 is 4Ω version which normally works with active bass speaker VS 18BA as satellite system.
Model No. | VS 12-8 | VS 12-4 |

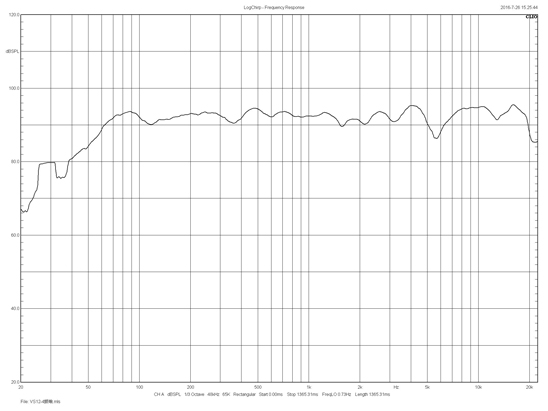

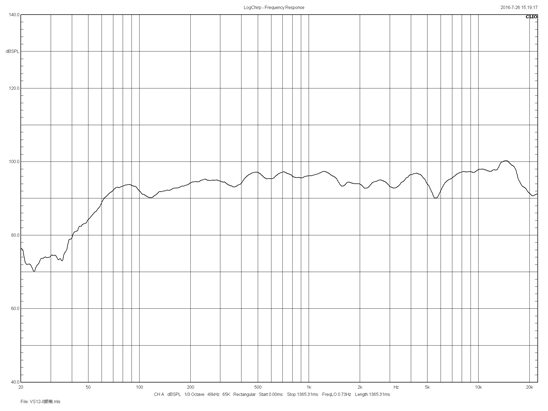

Frequency Response | 60Hz--18KHz(±3dB) | |
45Hz--20KHz(-10dB) | ||
LF Driver | 1 x 12" woofer(75mm voice coil), Ferrite | |
HF Driver | 1 x 1.75"(1" throat) Neodymium compression diver(44mm voice coil) | |
Nominal Coverage | 80° x 80° | |

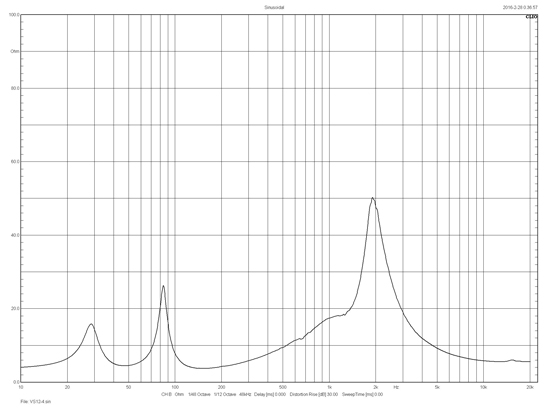

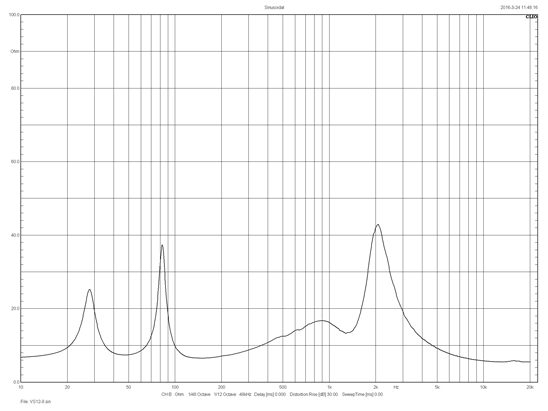

Impedance | 8Ω | 4Ω |
Sensitivity(@1w/1m) | 95dB | |
Power Rating | HF:50W, LF:450W | |
Max. SPL | 121dB SPL, 127dB peak | |
Dimensions (H x W x D) | 580 x 360 x 370 mm | |
Weight | 25 kg | |

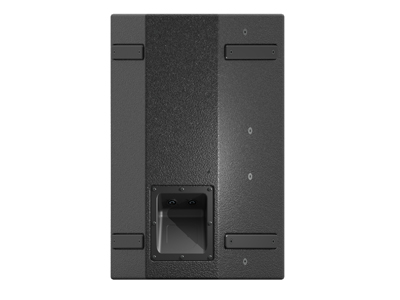

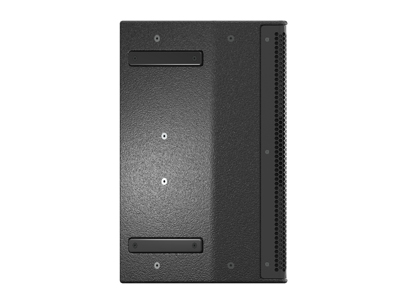

Riggings | 17 x M8 points, 4 x φ8 PIN + dual pole mount | |
Connection | 2 x Neutrik NL4MP, 1+1- | |
Enclosure | 15mm, 18mm multilayer plywood | |
Finish | Black water-based paint | |
Grille | Black steel mesh + acoustic transparent cloth |
