VS 15-8 | VS 15-4SINGLE 15" PASSIVE FULL RANGE SPEAKER

  • VS 15-8 | VS 15-4

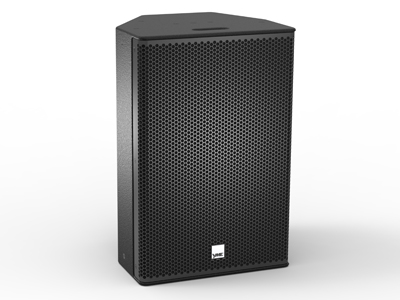

VS 15-8 is single 15” passive two way full range at 8Ω.  Rather than a normal coaxial driver, utilizing a creative design of coaxial structure – a 3”(75MM voice coil )with 80° x 80° horn is placed onto a 15” (75MM voice coil)symmetrically, which makes VS 15-8 perform perfectly with not only accurate sound image and high fidelity but also  powerful dispersion.

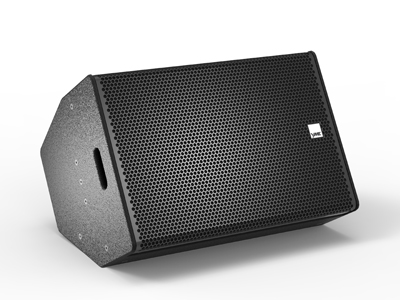

Thanks the multi-angle enclosure, VS 15-8 is suitable for use as stage monitor.The 4 nylon strips offer protection to the enclosure away from scratches.

Meanwhile, VS 15-8 comes up with various rigging and mounting options to meet the needs of most kinds of touring and installation applications.

VS 15-8 Can be pole-mounted on bass speakers (VS 18B) as PA or satellite system.

VS 15-4 is 4Ω version which normally works with active bass speaker VS 18BA as satellite system.



Model No.VS 15-8VS 15-4

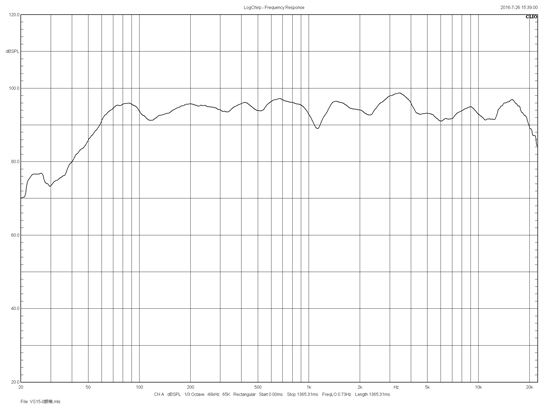

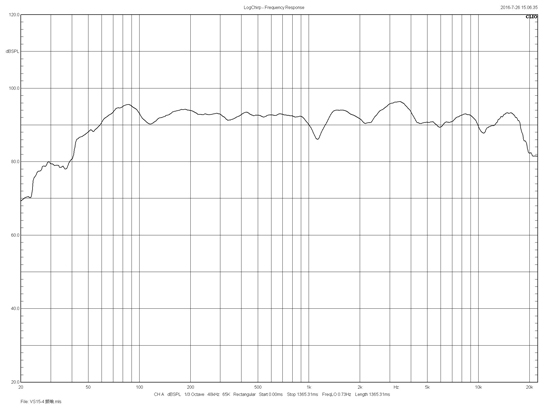

Frequency Response70Hz--18KHz(±3dB)
55Hz--20KHz(-10dB)
 LF Driver1 x 15" woofer(75mm voice coil), Ferrite
 HF Driver1 x 3"(1.4" throat) Neodymium compression diver(75mm voice coil)
 Nominal Coverage
80° x 80°

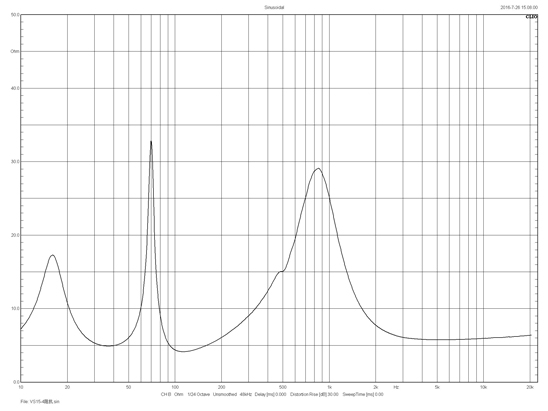

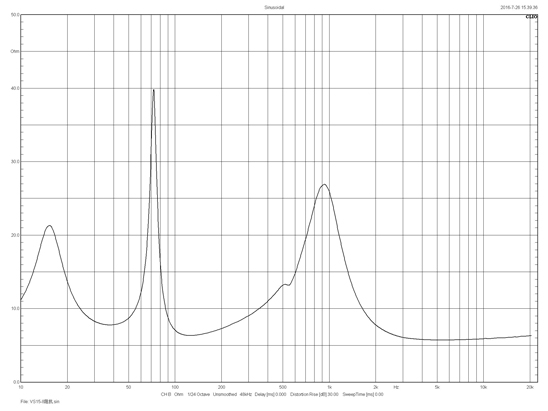

 Impedance8Ω4Ω
 Sensitivity(@1w/1m)96dB
 Power RatingHF:80W, LF:500W
 Max. SPL123dB SPL, 129dB peak
 Dimensions (H x W x D)545 x 297 x 330 mm
 Weight20 kg

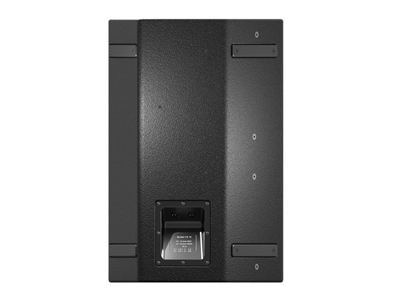

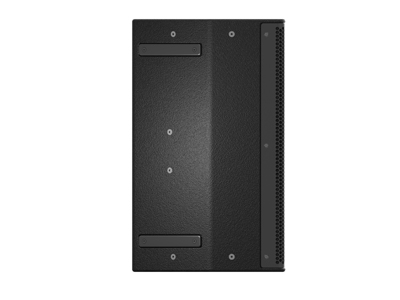

 Riggings17 x M8 points, 4 x φ8 PIN + dual pole mount
 Connection2 x Neutrik NL4MP, 1+1-
 Enclosure15mm, 18mm multilayer plywood
 FinishBlack water-based paint
 GrilleBlack steel mesh + acoustic transparent cloth
