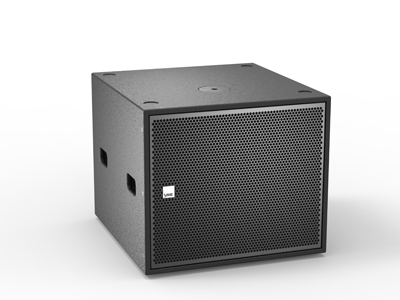

VS 15BASINGLE 15" ACTIVE SUBWOOFER SPEAKER
VS 15BA is the active version of VS 15B.
Thanks to the superpower and multi-channels of the amplifier module of YMESYSTEMS（2X1000@4Ω + 1X2500@4Ω）, 1 active VS 15BA can drive 2 2 pieces full range speakers (VS 8 or VS 10-4) and another passive bass speaker VS 15B. Better than the ordinary satellite system (one active sub amplifying 2 passive full range speakers), VERSA active satellite system delivers more powerful low frequency in more affordable price.
Thanks to the superpower and multi-channels of the amplifier module of YMESYSTEMS（2X1000@4Ω + 1X2500@4Ω）, 1 active VS 15BA can drive 2 2 pieces full range speakers (VS 8 or VS 10-4) and another passive bass speaker VS 15B. Better than the ordinary satellite system (one active sub amplifying 2 passive full range speakers), VERSA active satellite system delivers more powerful low frequency in more affordable price.

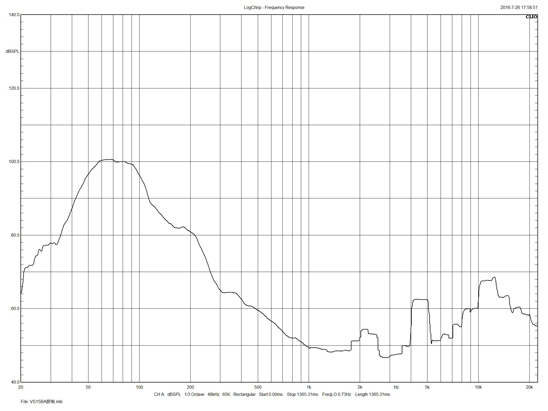

| Frequency Response | 50Hz--100Hz(±3dB) |
| 45Hz--150Hz(-10dB) | |
| Power Rating（AES） | 600W |
| LF Driver | 1x15" (75mm voice coil, ferrite) |
| Max. SPL | 124dB SPL, 130dB SPL Peak |
| Dimensions（HxWxD） | 468x545x600(mm) |
| Weight | |
| Connection | XLR+POWERCON+SPEAKON |
| Enclosure | 15mm, 18mm Multilayer Plywood |
| Riggings | M8 x 12 + M20 Mount |
| Finishing | Black water-based paint |

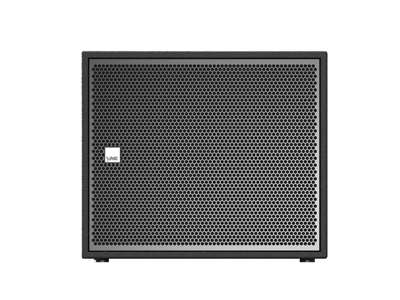

| Grille | Black steel mesh + acoustic transparent cloth |
| 3 Channels D Class Switching Power Amplifier Module | ||||
| Full Range Left | Full Range Right | Subwoofer | ||
| 4Ω | 1000W | 1000W | 2500W | |
| THD(1kHz, Full Power 4Ω) | ≤1% | ≤1% | ≤1% | |
| SNR | 102.5dB | 103dB | 103dB | |
| Gain(1Khz,8Ω) | 20dB | 32dB | 32dB | |

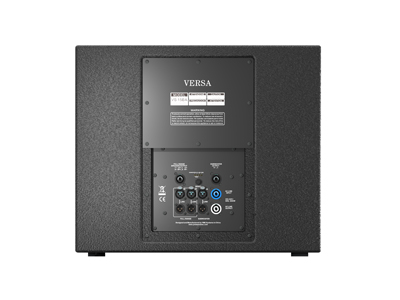

| Input Method | Neutrik & XLR male & XLR Female | |||
| Input Impedance | 20K Ω Banlanced/10kΩ Unbalanced | |||
| Input Connection (Full Range) | Neutrik NL4MP (LF: 1+1-, HF: 2+2-) | |||
| Input Connection (Subwoofer) | Neutrik NL4MP (SUB: 1+1- ) | |||
| Output Circuit Type | Class D | |||
| Cooling | The airflow direction is from the back to the front of the equipment | |||
| Voltage | 200-240V ~ 50-60Hz | |||
