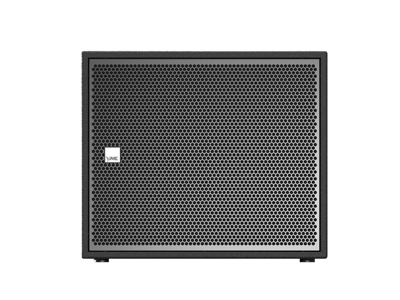

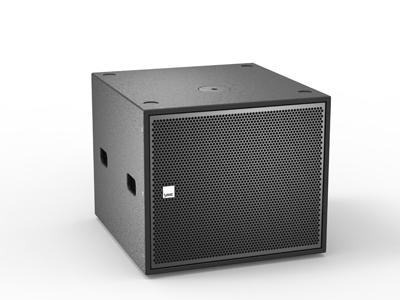

VS 18BSINGLE 18" PASSIVE SUBWOOFER SPEAKER
VS 18B is a single 18” bass passive bass speaker which is specially designed for small touring or install application where need high quality low frequency output.
A 18” (75 mm voice coil ) high performance woofer with special rubber-edged paper cone delivers ultra low frequency down to 45Hz (± 3dB) with more deepness and dynamics.
Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. Further more, the optional 4 lockable-wheel design offers easy movement.
A 18” (75 mm voice coil ) high performance woofer with special rubber-edged paper cone delivers ultra low frequency down to 45Hz (± 3dB) with more deepness and dynamics.
Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. Further more, the optional 4 lockable-wheel design offers easy movement.

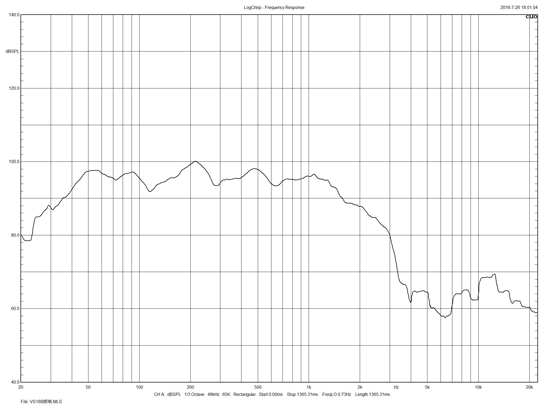

Frequency Response | 45Hz--120Hz(±3dB) |
35Hz--150Hz(-10dB) | |
Sensitivity(@1w/1m) | 98dB |

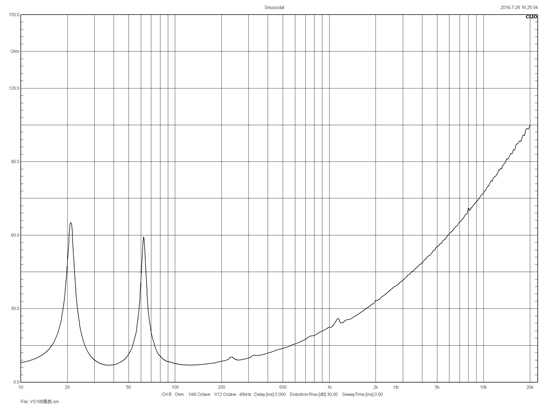

Nominal Impedance | 8Ω |
Power Rating(AES) | 800W |
LF | 1 x 18" woofer(100mm voice coil), Ferrite |
MAX SPL | 127dB SPL, 133dB SPL Peak |
Dimension(HxWxD) | 534x622x650(mm) |
Weight | |

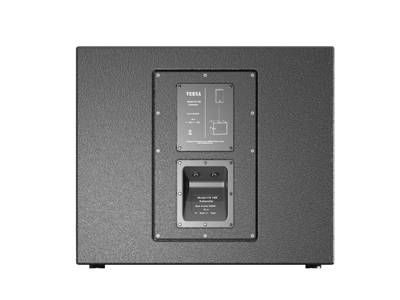

Connection | 2 x Neutrik NL4MP, LF: 1+1- |
Enclosure | 15mm, 18mm multilayer plywood |
Riggings | M8 x 12 + M20 Pole mount |
Finishing | Black water-based paint |
Grille | Black steel mesh + acoustic transparent cloth |
