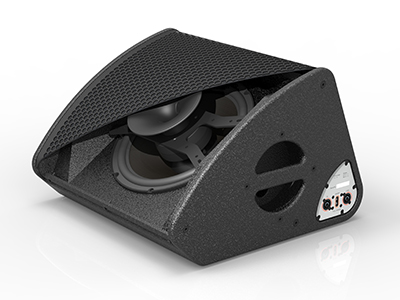

GT MSINGLE 13" PASSIVE STAGE MONITOR

Musicians and performers always want their voices to be heard strongly and clearly among loudness that produced by main PA system.Moreover, sound engineers always want monitor speaker that powerful but simple for use and no feedback of course.

Meeting the demands, GT M, the world first sigle 13” pro stage monitor was born.Rather than typical 12” and 15” divers, the extraordinary 13” size and special formulated carborn fiber cone provides faster and deeper response in low frequency. The high quality 3” neodymium tweeter that coaxially placed on the woofer. By avoiding interfere between tweeter and woofer, the coaxial structure design helps to produce amazing brightness and clarity for high frequency.

The crossover can be switchable between full range mode and biamp mode. For easier cabling on the stage, GT M has NL 4 connectors in both sides of the enclosure. GT M also can be used as small PA system with pole-mount design.

Frequency Response	60Hz - 18KHz (±3 dB)
	45Hz - 20KHz (-10dB)
Nominal Dispersion(-6dB)	60゜conical
Sensitivity(@1w/1m)	Hi:110dB, Low:100dB (biamp), 98dB (fullrange)
Power Rating(AES)	Hi:80W, Low:500W
Impedance	Hi:8Ω, Low:8Ω
Max SPL	Hi:129dB，135dB peak (biamp)
	Low:127dB，133dB peak (biamp); 125dB, 131dB peak (fullrange)
Drivers	Hi:1×3〞(1.5〞exit) neodymium compression driver(75mm voice coil)
	Low：1×13〞 (75mm voice coil neodymium)
Dimension（HXWXD）	380.3×555×546.3(mm)
Net Weight	28Kg
Rigging	M8 x 6, Pole mount socket
Connector	NL4MP x 3
Connection	Low: 1+1-, Hi: 2+2- (biamp); 1+1- (fullrange)
Enclosure	15mm first grade birch plywood
Finishing	Black polyurethane paint
Grille	2mm black steel mesh + acoustic transparent cloth
