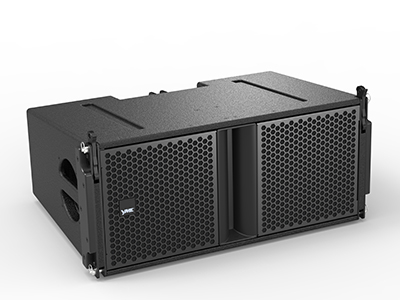

GT 11DUAL 11" PASSIVE LINE ARRAY SPEAKER

  • GT 11

Is there any line array system in the market which is able to handle not only mega outdoor performance where needs high and continuous SPL output but also small-medium indoor places where needs extra convenience in trucking and operation? GT 11, the world first dual 11” 3 way triamp line array system gives a very positive answer.With 140dB max SPL output, GT 11 is pleased to handle mega performance. Meanwhile,  the extremely compact and light enclosure (H:335×W:780×D:500 mm, 44kg) , GT 11 offers supurb convenience in trucking and operation.

The challenge of designing GT 11 is how to maintain excellent acoustics performance while putting 5 pcs speakers along with wave guide inside the amazingly compact enclosure.

GT 11 utilizes all neodymium drivers, which ensure high sensitivity,compact size and less weight. Up to 112dB sensitivity delivered by two 3” compression tweeters with 75mm titanium voice coil loaded in an integrated waveguide which meets all physics criteria of wave sculpture technology.105dB sensitivity produced by a 8” 50mm mid range drivers placed behind waveguide coaxially. The upper frequency limit of mid-range drivers is up to 8KHz ensures high resolution for mid-hi frequency range, the lower frequency can reach down to 200Hz.Two 11” woofers placed as V shape side by side with the mid-range. The special formulated carborn fiber cone gives ultra strengthness and lightness to mi-low frequency.The low frequency can be reached down to 60Hz, which makes GT 11 perfectly working with YG SUB.

Precision-made 18 mm birch plywood enclosure with a durable pollyurea paint finishing. The availability of EASE FOCUS 3 GLL works together with smart & presettable rigging system, the extraordinary GT 11 is the perfect choice which fits for all kind of touring applications.





Frequency Response60Hz - 16KHz (±3 dB)
50Hz - 20KHz (-10dB)
 Nominal Dispersion(-6dB)H:80゜or 120゜(optional); V:10゜(Adjustable)
 Sensitivity(@1w/1m)Hi:112dB, Mid:105dB ,Low:97dB
 Power Rating(AES)Hi:160W, Mid:150W ,Low:800W
 ImpedanceHi:16Ω, Mid:16Ω ,Low:12Ω
 Max SPLHi:134dB,140dB peak
Mid:127dB,133dB peak
Low:126dB,132dB peak
 DriversHi:2×3〞(1.5〞exit) neodymium compression
driver(75mm voice coil)
Mid:1×8〞 (50mm voice coil neodymium)
Low:2×11〞 (75mm voice coil neodymium)
 Dimension(HXWXD)335×780×500(mm)
 Net Weight44Kg
 Rigging3 rigging points,from 0°to 10°, adjustable
 ConnectorWP8 x 2
 ConnectionLow1 1-2+,Mid 3-4+, Hi 5-6-
 Enclosure18mm first grade birch plywood
 Finishing

Black polyurethane paint

 Grille

2mm black steel mesh + acoustic transparent cloth
