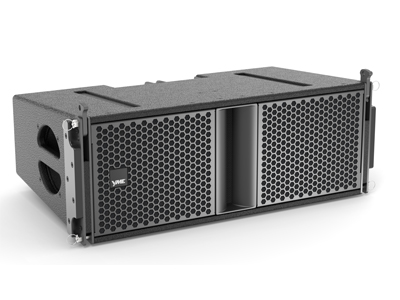

GT 9DUAL 9" PASSIVE LINE ARRAY SPEAKER
GT 9, the dual 9” 2 way triamp line array system is specially designed for applications where needs high fidelity output. Meanwhile, the extremely compact and light enclosure (H:256×W:780×D:4500 mm, 26kg) , GT 9 offers supurb convenience in trucking and operation.
The challenge of designing GT 9 is how to maintain excellent acoustics performance while putting 3 pcs speakers along with wave guide inside the amazingly compact enclosure.Up to 112dB sensitivity with penetration and delsmoothness delivered by 2 pcs 1.75” compression tweeters with 44mm voice coil loaded in an integrated waveguide which meets all physics criteria of wave sculpture technology.
The 2 pcs 9” woofers with the special formulated carborn fiber cone features ultra strengthness and lightness to mi-low frequency.The low frequency can be reached down to 60Hz, which makes GT 9 perfectly working with GT SUB.
Precision-made 18 mm birch plywood enclosure with a durable pollyurea paint finishing. The availability of EASE FOCUS 3 GLL works together with smart & presettable rigging system, the extraordinary GT 9 is the perfect choice which fits for small-medium size applications of touring and installation.
| Frequency Response | 80Hz - 16KHz (±3 dB) | |
| 60Hz - 18KHz (-10dB) | ||
| Nominal Dispersion(-6dB) | H:100゜; V:10゜(Adjustable) | |
| Sensitivity(@1w/1m) | Hi:112dB, L Low:97dB ,R Low:97dB | |
| Power Rating(AES) | Hi:120W, L Low:500W ,R Low:500W | |
| Impedance | Hi:16Ω, L Low:12Ω ,R Low:12Ω | |
| Max SPL | Hi:133dB，139dB peak | |
| L Low:124dB，130dB peak | ||
| R Low:124dB，130dB peak | ||
| Drivers | Hi:2×1.75〞(1〞exit) neodymium compression driver(44mm voice coil) | |
| Low：2×9〞 (75mm voice coil neodymium) | ||
| Dimension（HXWXD） | 265×780×450(mm) | |
| Net Weight | 26Kg | |
| Rigging | 3 rigging points，from 0°to 10°, adjustable | |
| Connector | WP8 x 2 | |
| Connection | L Low:1-2+，R Low:3-4+, Hi: 5-6+ | |
| Enclosure | 18mm first grade birch plywood | |
| Finishing | Black polyurethane paint | |
| Grille | 2mm black steel mesh + acoustic transparent cloth | |
