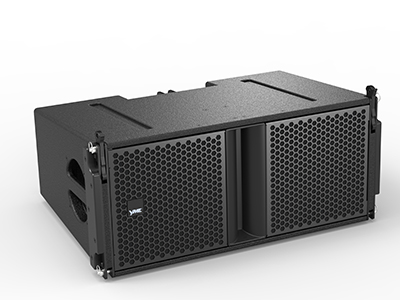

GT 11XDUAL 11" PASSIVE LINE ARRAY SPEAKER
GT 11X is the extreme edition of dual 11” ，3 way 4-chn-amp line array speaker.
GT 11X utilizes all neodymium drivers, which ensure high sensitivity，compact size and less weight(47kg). Up to 112dB sensitivity delivered by pcs 3” compression tweeters with 75mm titanium voice coil loaded in an integrated waveguide which meets all physics criteria of wave sculpture technology.
102dB sensitivity produced by 4 pcs 6” 38mm mid range drivers placed two sides of the waveguide symetrically. The upper frequency limit of mid-range drivers is up to 1290Hz ensures high resolution for mid-hi frequency range, the lower frequency can reach down to 250Hz.Two 11” woofers placed as V shape side by side with the mid-range. The special formulated carborn fiber cone gives ultra strengthness and lightness to mi-low frequency.The low frequency can be reached down to 50Hz, which makes GT 11X perfectly working with GT SUB.
| Frequency Response | 60Hz - 16KHz (±3 dB) | |
| 50Hz - 18KHz (-10dB) | ||
| Nominal Dispersion(-6dB) | H:80゜or 120゜(optional); V:10゜(Adjustable) | |
| Sensitivity(@1w/1m) | Hi:112dB, Mid:102dB ,Low(L):97dB, Low(R):97dB | |
| Power Rating(AES) | Hi:160W, Mid:320W ,Low(L):600W, Low(R):600W | |
| Impedance | Hi:16Ω, Mid:16Ω ,Low(L):12Ω ,Low(R):12Ω | |
| Max SPL | Hi:134dB，140dB peak | |
| Mid:127dB，133dB peak | ||
| Low(L):124dB，130dB peak | ||
| Low(R):124dB，130dB peak | ||
| Drivers | Hi:2×3〞(1.5〞exit) neodymium compression driver(75mm voice coil) | |
| Mid：4×6〞 (38mm voice coil neodymium) | ||
| Low：2×11〞 (75mm voice coil neodymium) | ||
| Dimension（HXWXD） | 335×780×500(mm) | |
| Net Weight | 49Kg | |
| Rigging | 3 rigging points，from 0°to 10°, adjustable | |
| Connector | WP8 x 2 | |
| Connection | Low(L): 1-2+, Low(R): 3-4+, Mid: 5-6+, Hi: 7-8+ | |
| Enclosure | 18mm first grade birch plywood | |
| Finishing | Black polyurethane paint | |
| Grille | 2mm black steel mesh + acoustic transparent cloth | |
