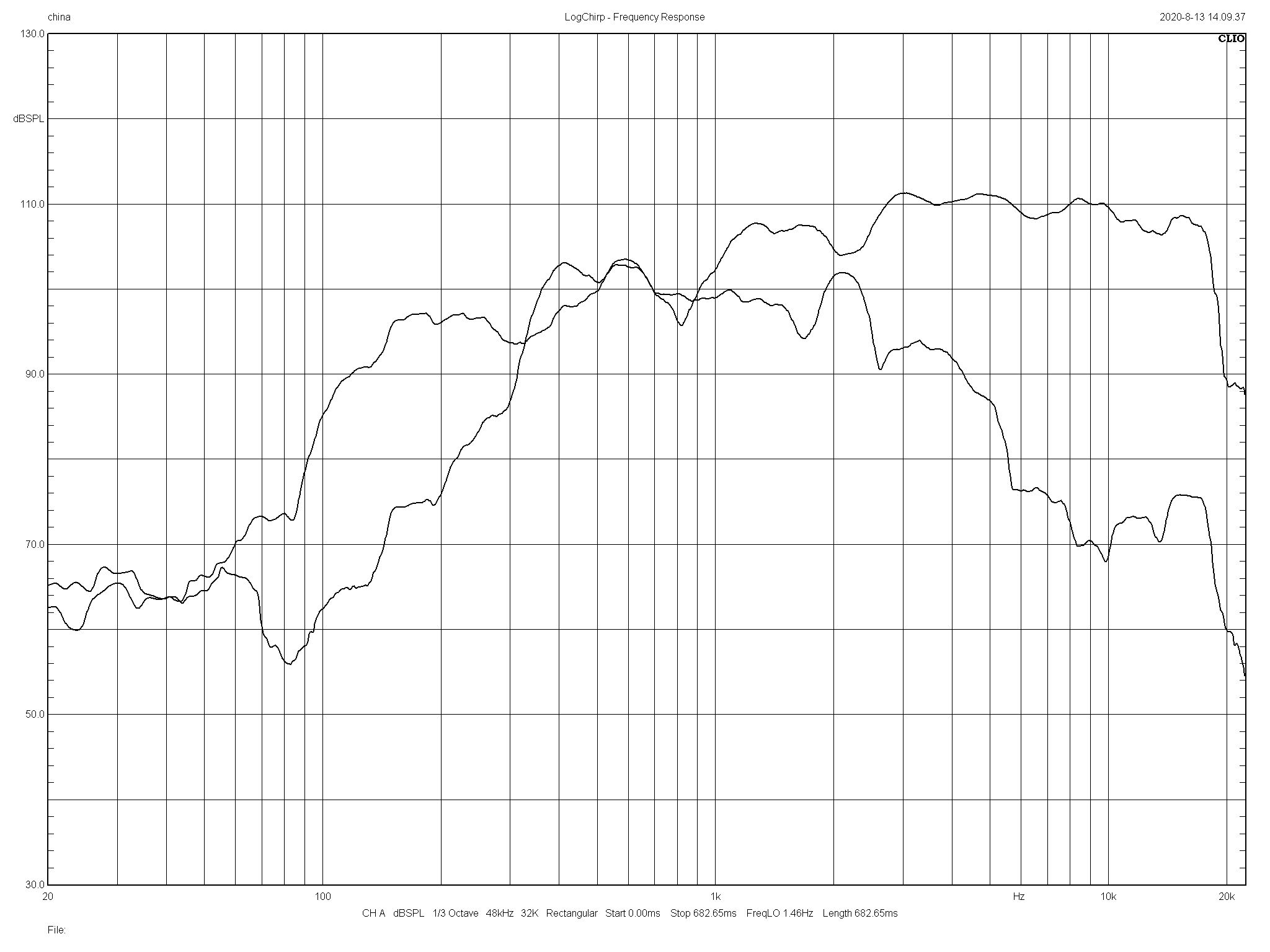

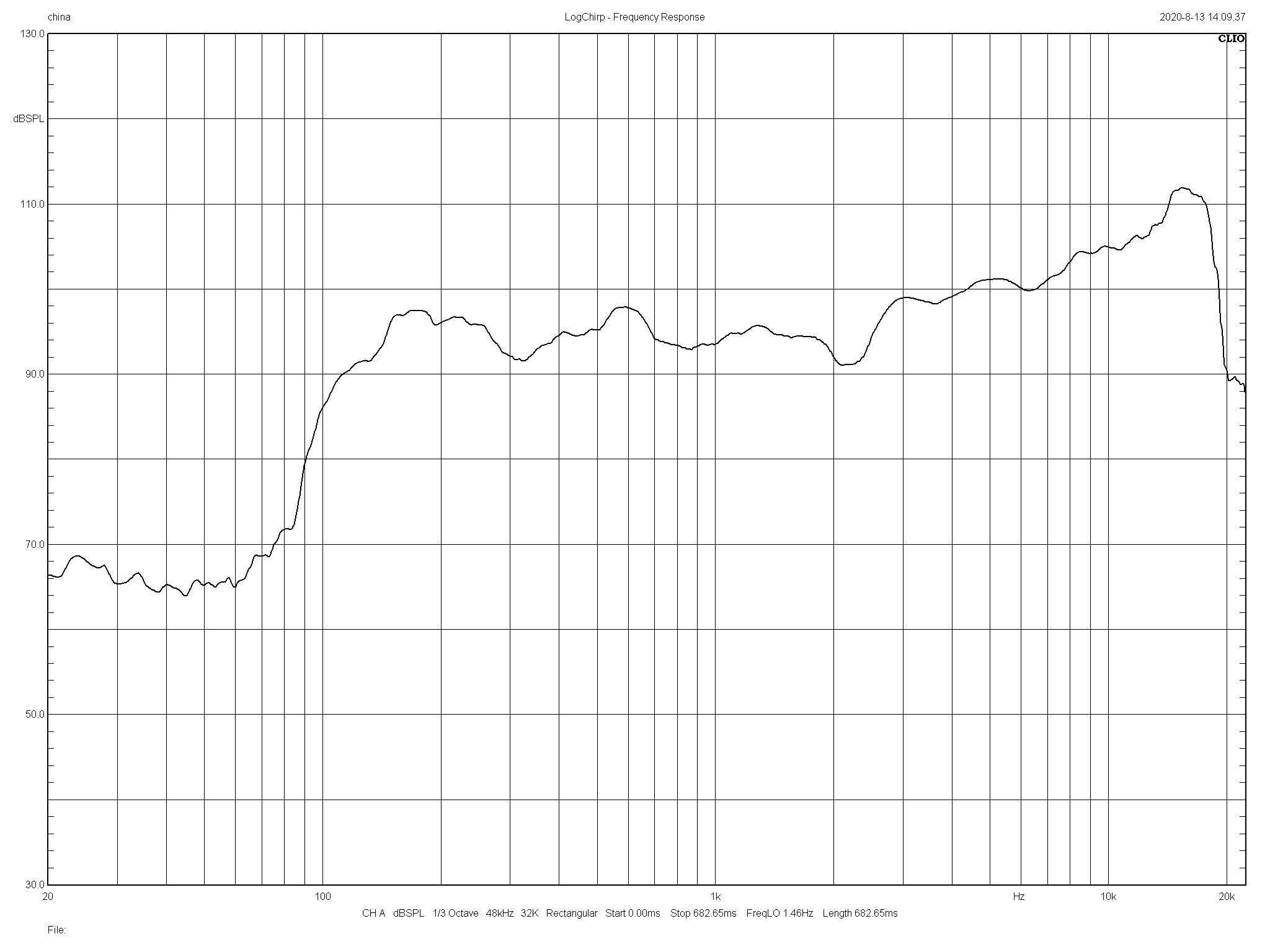

Frequency Response
| 130 Hz ~ 16kHz (±3 dB) |
| 95Hz ~ 20kHz (-10dB ) |
| Nominal Dispersion(-6dB) | 100° ×10° |
| Sensitivity(@1w / 1m) | HF:108dB ,LF:96dB |
| Power Rating(AES) | Hi:80W, Low:350W |

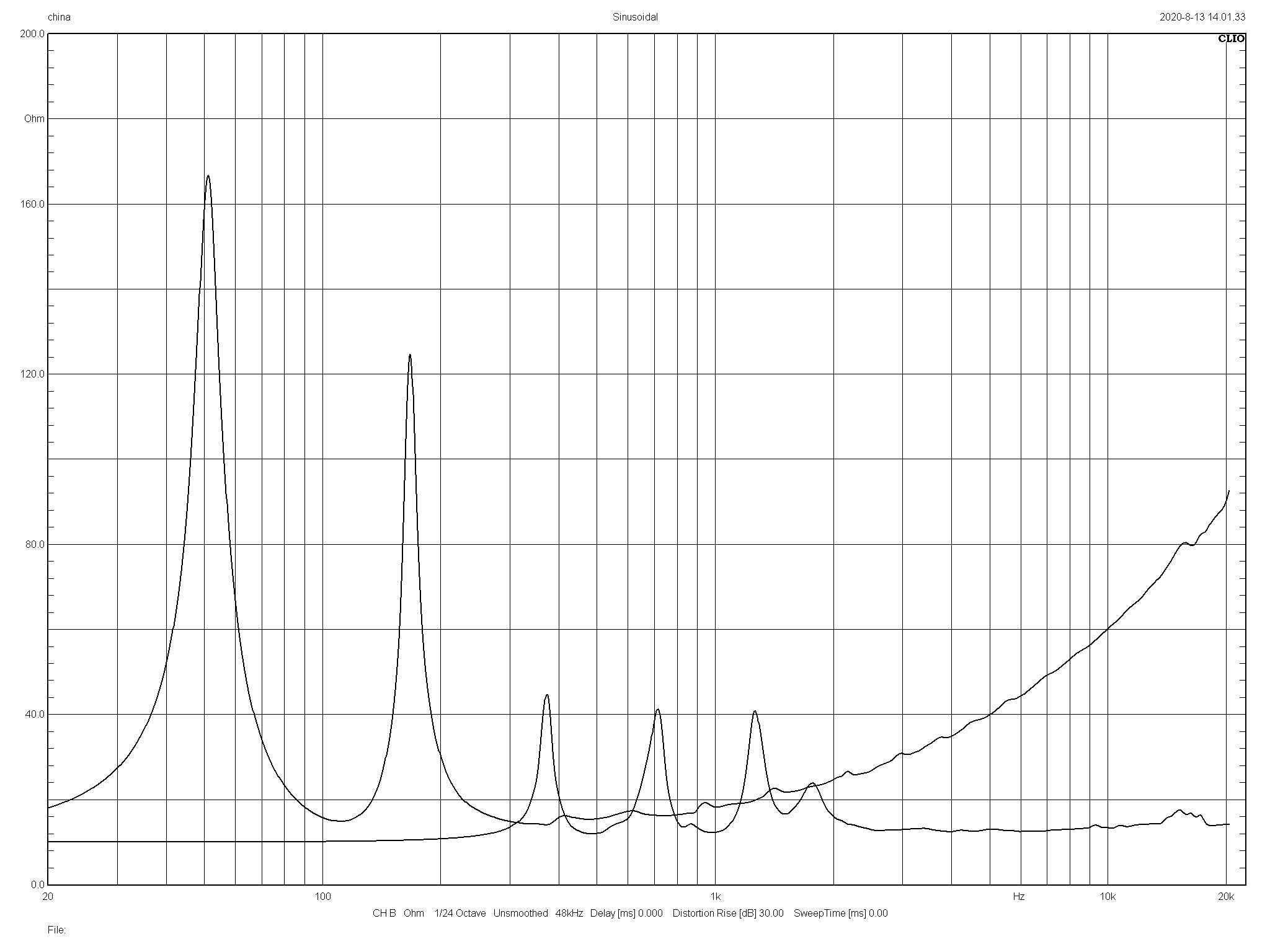

| Nominal Impedance | Hi:16Ω, Low:16Ω |
Maximum SPL
| Hi:127dB SPL，133dB SPL peak |
| Low:121dB SPL，127dB SPL peak |

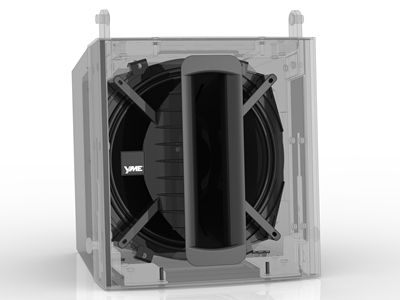

Drivers
| Hi:3"Tweeter, Neodymium |
| Low:9" (75mm Voice Coil , Neodymium.) |
| Dimensions (H x W x D) | 302.5×250×298(mm) |
| Net Weight | 12kg |
| Riggings | 3 Fly Points + Pole Mounts |

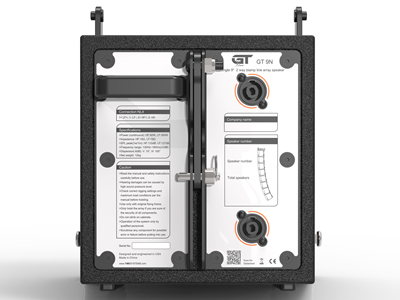

| Connector | NL4×2 |
| Connection Method | LF:1+1-, HF:2+2- |
| Enclosure | 15mm Multilayer Birch Plywood |
| Finish | Black polyurethane paint |
| Grille | Black steel mesh + acoustic transparent cloth |
