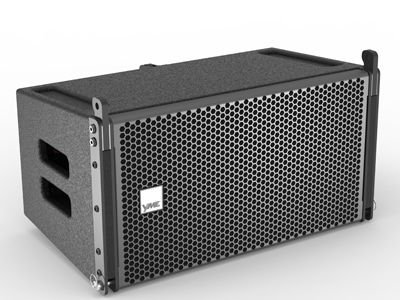

YG 65SINGLE 10" LINE ARRAY SPEAKER

  • YG 65
The YG 65 is a single10" two way bi-amp passive line array speaker specially designed to small-medium live touring performance which needs crucial sound quality. YG 65 is a true line array speaker which designed by meeting all criteria of Wave front Sculpture Technology (WST)--A true line array should be guided strictly by physics principle of WST.

YG 65 utilizes a high quality neodymium 1.4" horn throat compression tweeter with 65 mm (2.6") voice coil and a 10” high output neodymium mid-low driver with 75mm voice coil and humidity resistant paper cone, coupled with an optimized waveguide (10° vertical and 90° horizontal dispersion). YG 65 ensures extraordinary performance with penetration and smoothness.

Ultra compact and solid enclosure made from 15mm or 18mm high quality plywood and finished with durable water paint for touring use.The 2 nylon strips offer protection to the bottom of the enclosure from scratches. Together with the slot which designed on the top of enclosure, the nylon strips also facilitate installation of one enclosure to another much easier.

YG 65 can be either flown, ground stacked or pole-mounted on bass speakers(YG 18/A) as main PA or ground stacked with subwoofer (YG SUB/YG SUBA) for front fill use.The integrated rigging system benefits from 3-point loading design. It’s precisely made and highly safe with durable magnetic PIN. The rigging system offers angle adjustment from 0 to 10° with 2° step.


 Frequency Response90Hz--18kHz(±3dB)
80Hz--20kHz(-10dB)
 Sensitivity (@1w / 1m)HF:110dB, LF:103dB
 Nominal ImpedanceHF:16Ω, LF:16Ω
 Power Rating (AES)HF:80W, LF:350W
 LF Driver1x10 "(75mm voice coil) neodymium
 HF Driver1x2.6 "(1.4 "throat) neodymium compression driver (65mm voice coil)
 Nominal Coverage Angle90 ° (H), Vertically adjustable maximum 10 °
 Maximum SPLHF:129dB SPL, 135dB SPL peak
LF:128dB SPL, 134dB SPL peak
 Crossover Point1.3kHz
 Dimensions (H x W x D)279x 526 x 339 mm
 Weight20kg
 Connection2 x Neutrik NL4MP, LF:1+1-, HF:2+2-
 Enclosure15mm, 18mm multilayer birch plywood
 Finish

Black water-based paint

 Grille

Black steel mesh + acoustic transparent cloth
