YG 18SINGLE 18" PASSIVE BASS SPEAKER
YG 18 is a single 18" passive bass speaker specially designed to small-medium live touring performance which needs crucial sound quality.
YG 18 is a flying bass that utilizes high performance single 18” ferrite driver (100mm voice coil and a humidity resistant paper cone), lowering the range down to 45Hz (± 3dB) and delivering output with high efficiency, great range and excellent dynamics. Its compact size and integrated rigging make it extremely well suited for flown, ground stacked or pole-mounted with YG 65 line array speaker.

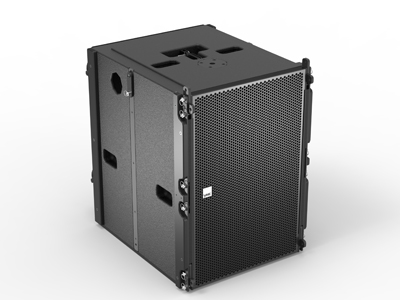

Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. The enclosure is well-protected by multi nylon strips from left to right and from back to the bottom. It is perfect for tough conditions of touring performance. Further more, the 4 lockable wheel design offers easy movement.
Due to the universal enclosure design, passive YG 18 can be converted to active YG 18A by simply installing the amplifier module.
YG 18 is a flying bass that utilizes high performance single 18” ferrite driver (100mm voice coil and a humidity resistant paper cone), lowering the range down to 45Hz (± 3dB) and delivering output with high efficiency, great range and excellent dynamics. Its compact size and integrated rigging make it extremely well suited for flown, ground stacked or pole-mounted with YG 65 line array speaker.
Ultra compact and solid enclosure made from18mm high quality plywood and finished with durable water paint. The enclosure is well-protected by multi nylon strips from left to right and from back to the bottom. It is perfect for tough conditions of touring performance. Further more, the 4 lockable wheel design offers easy movement.
Due to the universal enclosure design, passive YG 18 can be converted to active YG 18A by simply installing the amplifier module.

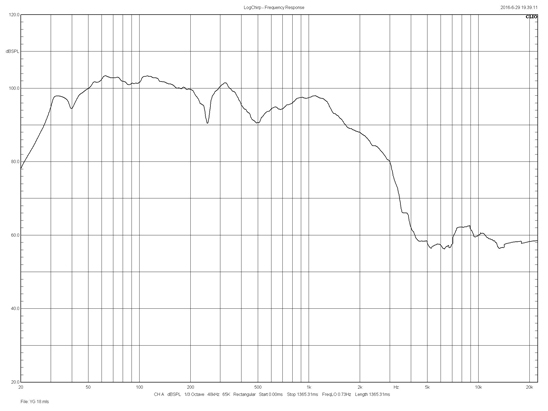

| Frequency Response | 45Hz - 100Hz (± 3dB) |
| 35Hz - 150Hz (-10dB) | |
| Sensitivity (1W / 1M) | 98dB |

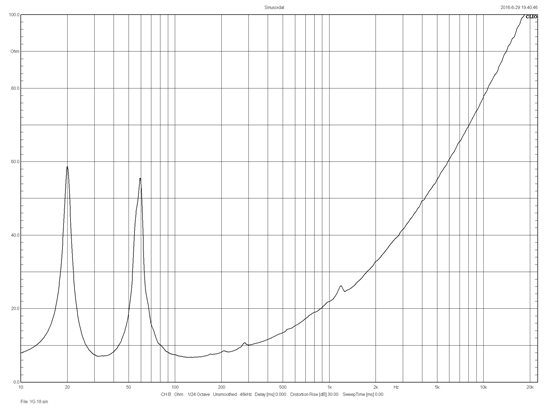

| Nominal Impedance | 8Ω |
| Power Rating (AES) | 800W |
| LF Driver | 1x18 "(100mm Voice Coil) , Ferrite |
| Maximum SPL | 127dB SPL, 133dB SPL peak |
| Dimensions (H x W x D) | 750 x 556 x 814 mm |
| Weight | 58 kg |
| Connection | 2 x Neutrik NL4MP, LF: 1+1- |
| Enclosure | 15mm, 18mm, 24mm multilayer plywood |
| Rigging | 3 fly points + pole mount |
| Finish | Black water-based paint |
| Grille | Black steel mesh + acoustic transparent cloth |
