YG 75SINGLE 10" PASSIVE LINE ARRAY SPEAKER
The YG 75 is a 10" two-way bi-amp passive line array speaker specially designed to small-medium live touring performance which needs crucial sound quality.YG 75 is a real line array speaker which designed by meeting all criteria of wave front sculpture technology.
YG 75utilizes a high quality neodymium 1.4" horn throat compression tweeter with 75 mm (3") voice coil and a 10” high output neodymium mid-low driver with 75mm voice coil and humidity resistant paper cone, coupled with an optimized waveguide(10° vertical and 90° horizontal dispersion). YG 75 provides extraordinary performance with penetration and smoothness.
Ultra compact and solid enclosure made from 15mm or 18mm high quality birch plywood and finished with superb polyurea paint which features anti-scratch and waterproof.The 2 nylon strips offer protection to the bottom of the enclosure from scratches. Together with the slot which designed on the top of enclosure, the nylon strips also facilitate installation of one enclosure to another much easier.

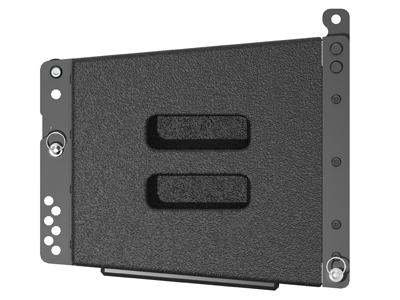

YG 75 Can be either flown, ground stacked or pole-mounted on bass speakers (YG 30/A) as main PA or ground stacked with subwoofer (YG SUB/A) for front fill use.The integrated rigging system benefits from 3-point loading design, precision-made and highly safe rigging hardware and durable magnetic PIN. The rigging systems offers angle adjustment from 0 to 10° with 2° step.
YG 75utilizes a high quality neodymium 1.4" horn throat compression tweeter with 75 mm (3") voice coil and a 10” high output neodymium mid-low driver with 75mm voice coil and humidity resistant paper cone, coupled with an optimized waveguide(10° vertical and 90° horizontal dispersion). YG 75 provides extraordinary performance with penetration and smoothness.
Ultra compact and solid enclosure made from 15mm or 18mm high quality birch plywood and finished with superb polyurea paint which features anti-scratch and waterproof.The 2 nylon strips offer protection to the bottom of the enclosure from scratches. Together with the slot which designed on the top of enclosure, the nylon strips also facilitate installation of one enclosure to another much easier.
YG 75 Can be either flown, ground stacked or pole-mounted on bass speakers (YG 30/A) as main PA or ground stacked with subwoofer (YG SUB/A) for front fill use.The integrated rigging system benefits from 3-point loading design, precision-made and highly safe rigging hardware and durable magnetic PIN. The rigging systems offers angle adjustment from 0 to 10° with 2° step.

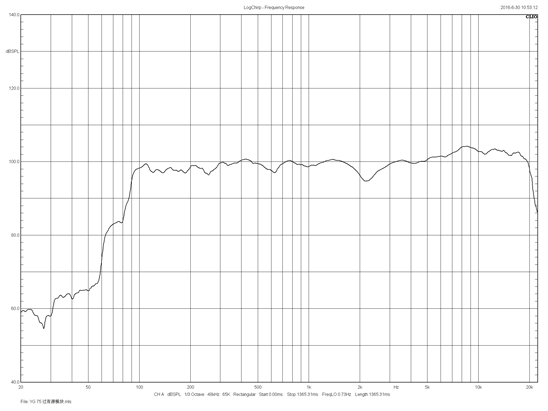

Frequency Response | 90Hz--18kHz(±3dB) |
80Hz--20kHz(-10dB) | |
Sensitivity (1W / 1M) | HF:112dB, LF:103dB |

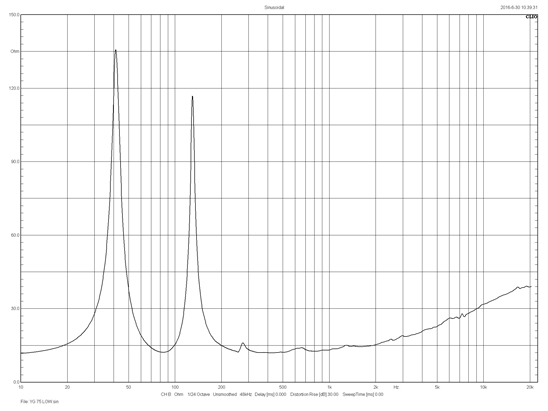

Nominal Impedance | HF:16Ω, LF:16Ω |
Power Rating (AES) | HF:80W, LF:350W |
LF Driver | 1x10 "(75mm voice coil), Neodymium |
HF Driver | 1x3"(1.4 "throat) neodymium compression driver (75mm voice coil) |
Nominal Coverage | 90 ° (H), Vertically adjustable maximum 10 ° |
Maximum SPL | HF:131dB SPL, 137dB SPL peak |
LF:128dB SPL, 134dB SPL peak | |
Crossover Point | 1.3kHz |
Dimensions (H x W x D) | 279x526x339(mm) |
Weight | 20kg |
Connection | 2 x Neutrik NL4MP, LF:1+1-, HF:2+2- |
Enclosure | 15mm, 18mm multilayer birch plywood |
Finish | Black polyurethane paintwork |
Grille | Black steel mesh + acoustic transparent cloth |
