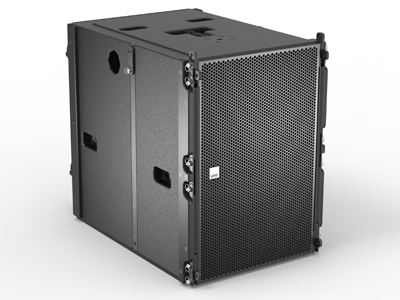

YG 30DUAL 15" PASSIVE BASS SPEAKER
YG 30 is a 2 X 15" passive bass speaker specially designed to small-medium live touring performance which needs crucial sound quality.
YG 30 is a flying bass that utilizes high performance dual 15” neodymium driver (75mm voice coil and a humidity resistant paper cone), lowering the range down to 45Hz (± 3dB) and delivering output with high efficiency, great range ,deep frequency and excellent dynamics. Its compact size and integrated rigging make it a perfect suit for flown, ground stacked or pole-mounted with YG 75 line array speaker.

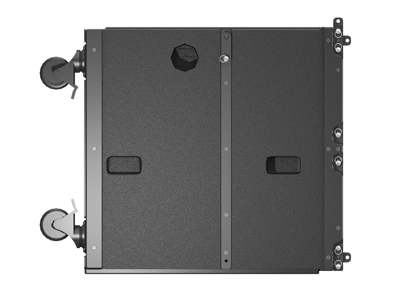

Ultra compact and solid enclosure made from18mm high quality birch plywood and finished with superb polyurea paint which features anti-scratch and waterproof. The enclosure is well-protected by multi nylon strips from left to right and from the back to the bottom side. It’s perfectly suitable for tough conditions of touring performance. Furthermore, the 4 lockable wheels design offers easy movement.
Due to the universal enclosure design, passive YG 30 can be converted to active YG 30A by simply installing the amplifier module.
YG 30 is a flying bass that utilizes high performance dual 15” neodymium driver (75mm voice coil and a humidity resistant paper cone), lowering the range down to 45Hz (± 3dB) and delivering output with high efficiency, great range ,deep frequency and excellent dynamics. Its compact size and integrated rigging make it a perfect suit for flown, ground stacked or pole-mounted with YG 75 line array speaker.
Ultra compact and solid enclosure made from18mm high quality birch plywood and finished with superb polyurea paint which features anti-scratch and waterproof. The enclosure is well-protected by multi nylon strips from left to right and from the back to the bottom side. It’s perfectly suitable for tough conditions of touring performance. Furthermore, the 4 lockable wheels design offers easy movement.
Due to the universal enclosure design, passive YG 30 can be converted to active YG 30A by simply installing the amplifier module.

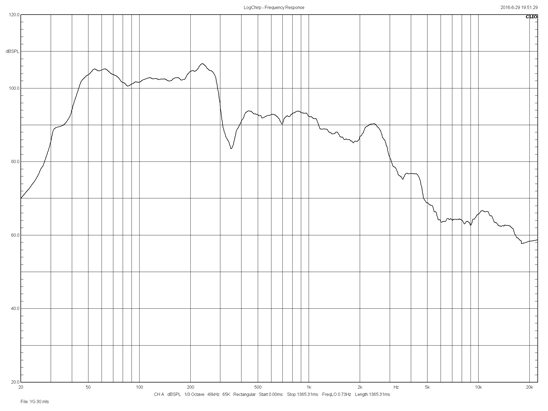

| Frequency Response | 45Hz - 100Hz (± 3dB) |
| 32Hz - 150Hz (-10dB) | |
| Sensitivity (@1w / 1m) | 99dB |

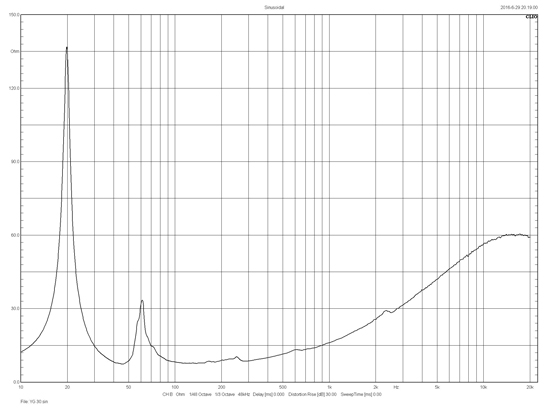

| Nominal Impedance | 8Ω |
| Power Rating (AES) | 1000W |
| LF Driver | 2 x 15 "(100mm voice coil), Neodymium |
| Maximum SPL | 129dB SPL, 135dB SPL peak |
| Dimensions (H x W x D) | 747x556x785(mm) |
| Weight | 62kg |
| Connection | 2 x Neutrik NL4MP, LF: 1+1- |
| Enclosure | 15mm, 18mm, 24mm multilayer birch plywood |
| Rigging | Four fly points + pole mount |
| Finish | Black polyurethane paintwork |
| Grille | Black steel mesh + acoustic transparent cloth |
